Rockchip Developer Guide Linux GMAC Mode Configuration
RGMII/RMII 主要模式连接图罗列如下：
1.RGMII 模式
一般使用主控 PLL 输出 时钟 output 方式，PHY 提供的 125M 时钟作为 input 方式为备选方案。

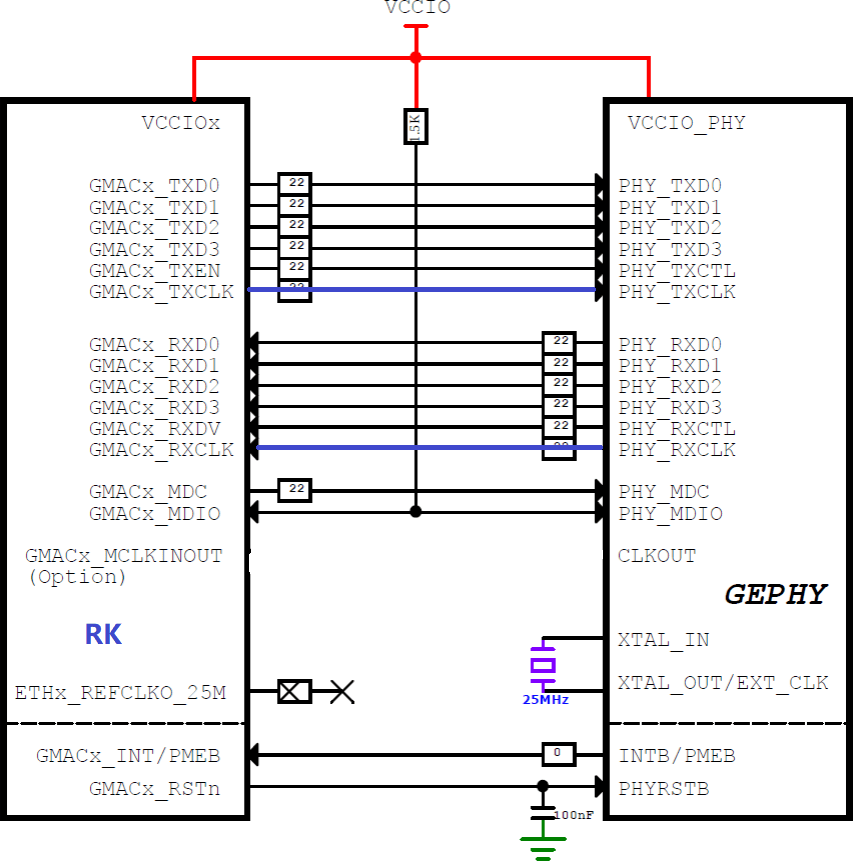

1.1 PLL output 125M for TX_CLK, Crystal 25M for PHY
主控 PLL 提供 TXCLK 所需时钟，PHY 25M 时钟由晶振提供。

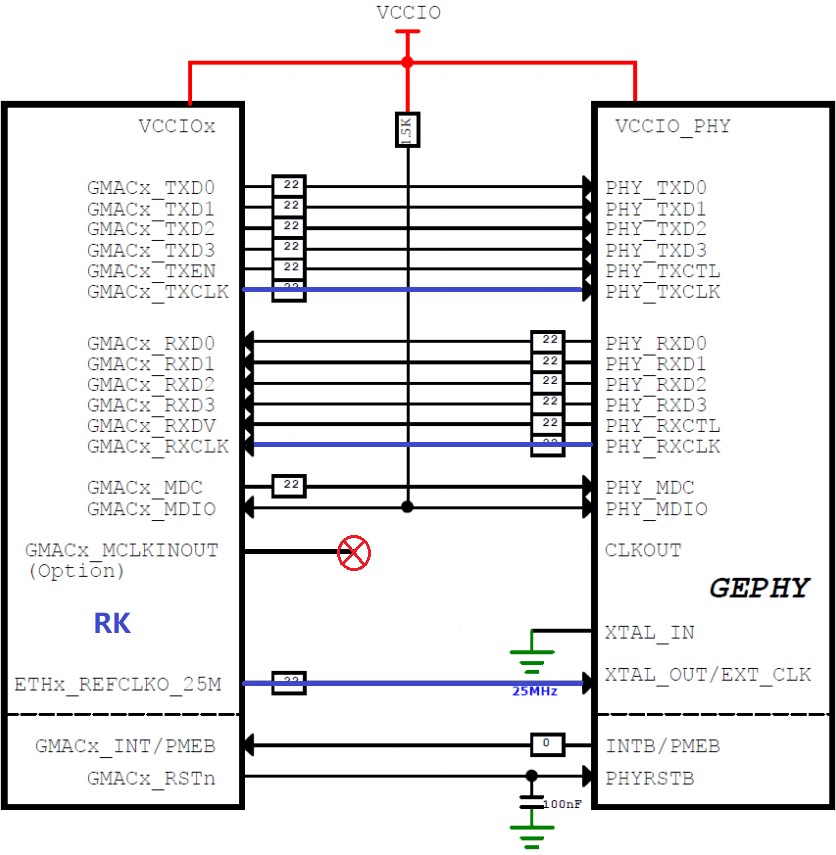

1.2 PLL output 125M for TX_CLK, PLL 25M for PHY
主控 PLL 提供 TXCLK 所需时钟，PHY 25M 时钟由主控提供。

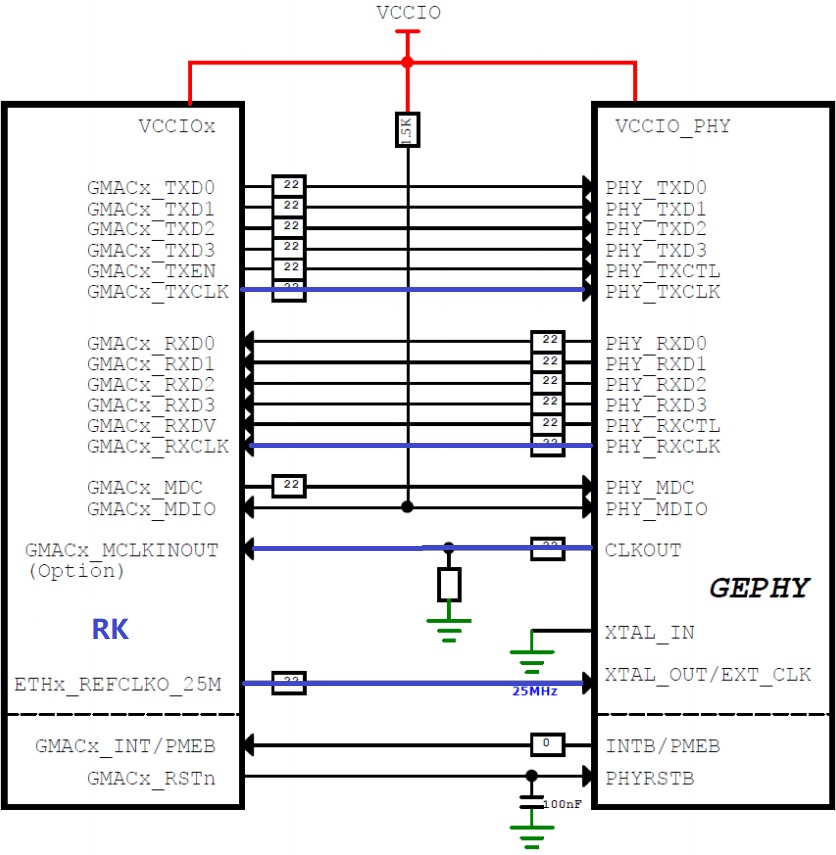

1.3 125M TX_CLK input from PHY, PLL 25M for PHY
TXCLK 所需时钟由 PHY 提供，PHY 25M 时钟由主控提供。

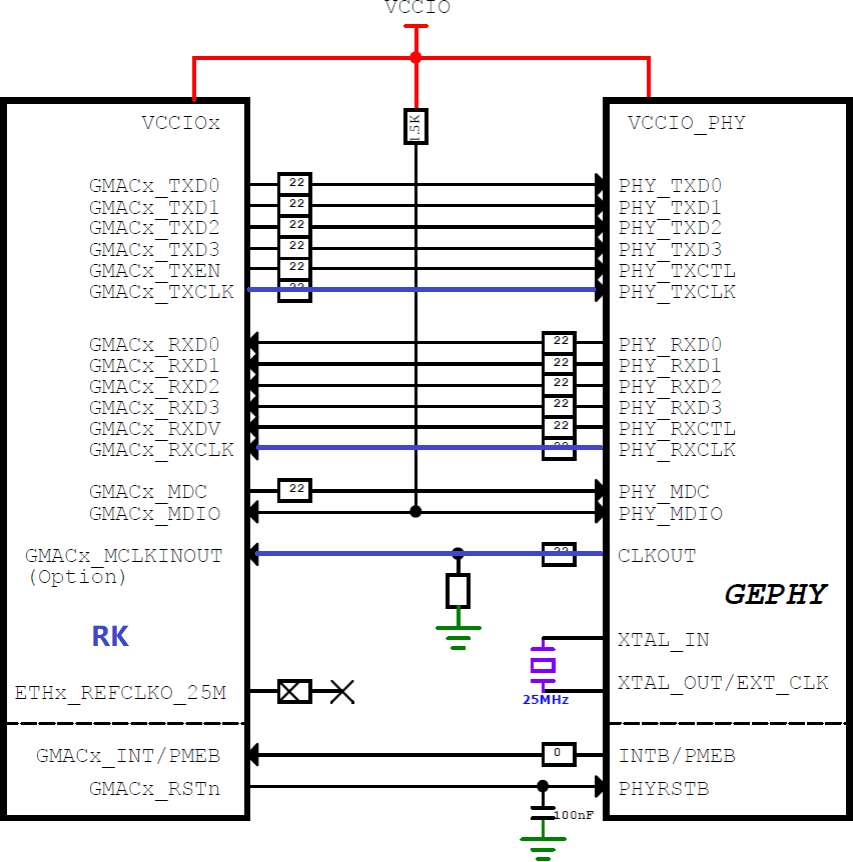

1.4 125M TX_CLK input from PHY, Crystal 25M for PHY
TXCLK 所需时钟由 PHY 提供，PHY 25M 时钟由晶振提供。
2. RMII 模式

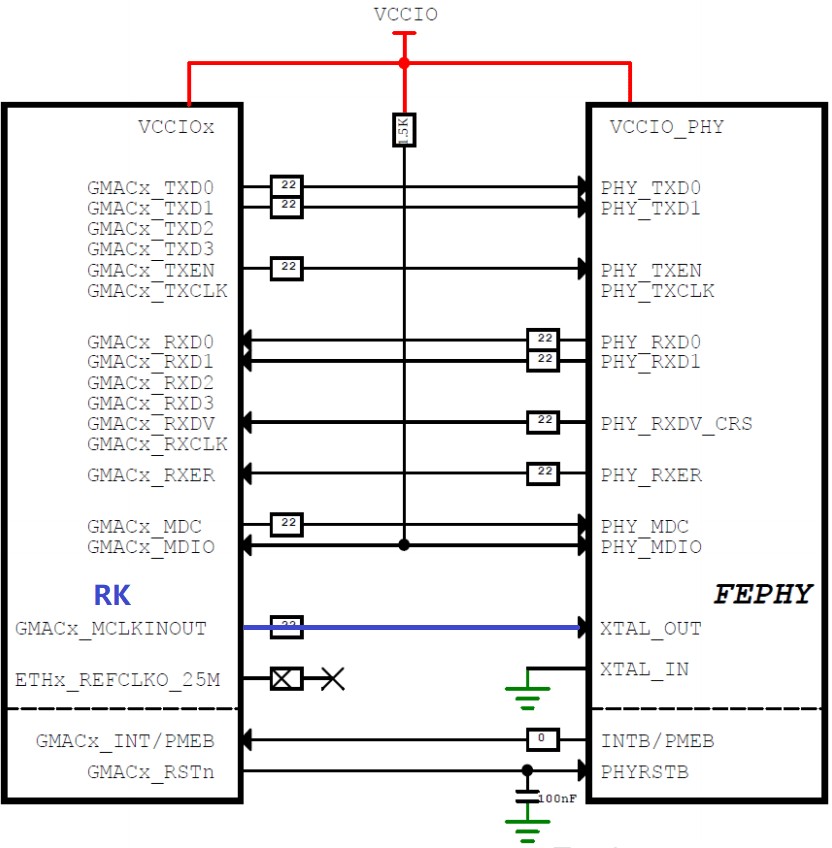

2.1 RMII Clock Output
主控提供 RMII 所需时钟

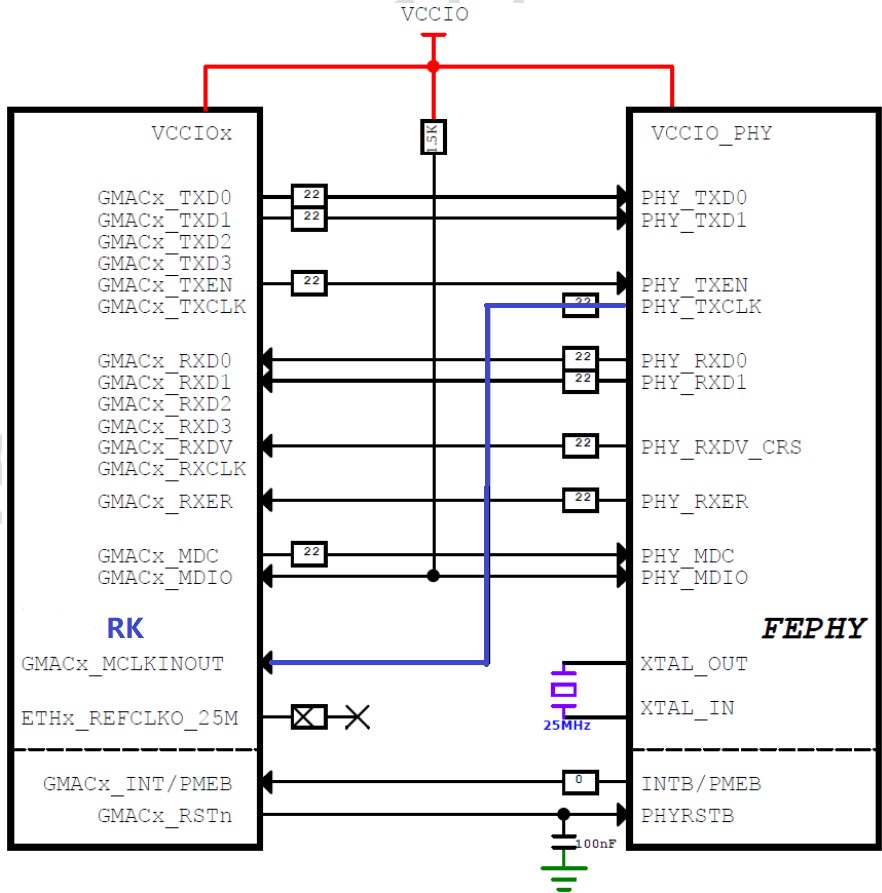

2.2 RMII Clock Input
PHY 提供 RMII 所需时钟
同样，RMII 模式下，晶振也可以由主控输出 25M 替代。
3 模式配置
不同模式下的配置主要包含了 phy mode，clock 和 pinctrl的配置，这些配置都是关联的，需要同时配置，否则无法工作。以下是各芯片不同模式下，以 SDK 板级 DTS 为例的不同配置方式的参考，关注dts 中 gmac 节点里 '+'部分的修改。
3.1 PX30
3.1.1 RMII Clock Output
&gmac {
phy-supply = <&vcc_phy>;
+ clock_in_out = "output";
+ assigned-clocks = <&cru SCLK_MAC>;
+ assigned-clock-rates = <50000000>;
snps,reset-gpio = <&gpio2 13 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 50000 50000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmii_pins &mac_refclk_12ma>;
status = "okay";
};
3.1.2. RMII Clock Input
&gmac {
phy-supply = <&vcc_phy>;
+ clock_in_out = "input";
+ assigned-clocks = <&cru SCLK_MAC>;
+ assigned-clock-parents = <&gmac_clkin>;
snps,reset-gpio = <&gpio2 13 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 50000 50000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmii_pins &mac_refclk>;
status = "okay";
}
3.2 RK1808
3.2.1. RMII Clock Output：
&gmac {
phy-supply = <&vcc_phy>;
+ phy-mode = "rmii";
+ clocks = <&cru SCLK_GMAC>, <&cru SCLK_GMAC_RX_TX>,
+ <&cru SCLK_GMAC_RX_TX>, <&cru SCLK_GMAC_REF>,
+ <&cru SCLK_GMAC_REFOUT>, <&cru ACLK_GMAC>,
+ <&cru PCLK_GMAC>, <&cru SCLK_GMAC_RMII_SPEED>;
+ clock-names = "stmmaceth", "mac_clk_rx",
+ "mac_clk_tx", "clk_mac_ref",
+ "clk_mac_refout", "aclk_mac",
+ "pclk_mac", "clk_mac_speed";
+ assigned-clocks = <&cru SCLK_GMAC_RX_TX>;
+ assigned-clock-parents = <&cru SCLK_GMAC_RMII_SPEED>;
snps,reset-gpio = <&gpio0 10 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 50000 50000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmii_pins>;
status = "okay";
}
3.2.2. RMII Clock Input`
+&gmac_clkin {
+ clock-frequency = <50000000>;
+}
&gmac {
phy-supply = <&vcc_phy>;
+ phy-mode = "rmii";
+ clock_in_out = "input";
+ clocks = <&cru SCLK_GMAC>, <&cru SCLK_GMAC_RX_TX>,
+ <&cru SCLK_GMAC_RX_TX>, <&cru SCLK_GMAC_REF>,
+ <&cru SCLK_GMAC_REFOUT>, <&cru ACLK_GMAC>,
+ <&cru PCLK_GMAC>, <&cru SCLK_GMAC_RMII_SPEED>;
+ clock-names = "stmmaceth", "mac_clk_rx",
+ "mac_clk_tx", "clk_mac_ref",
+ "clk_mac_refout", "aclk_mac",
+ "pclk_mac", "clk_mac_speed";
+ assigned-clocks = <&cru SCLK_GMAC_RX_TX>, <&cru SCLK_GMAC>;
+ assigned-clock-parents = <&cru SCLK_GMAC_RMII_SPEED>, <&gmac_clkin>;
snps,reset-gpio = <&gpio0 10 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 50000 50000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmii_pins>;
status = "okay";
}
3.2.3 RGMII Clock Output
&gmac {
phy-supply = <&vcc_Phy>;
+ phy-mode = "rgmii";
+ clock_in_out = "output";
+ assigned-clocks = <&cru SCLK_MAC>;
+ assigned-clock-rates = <125000000>;
snps,reset-gpio = <&gpio0 10 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
tx_delay = <0x50>;
rx_delay = <0x3a>;
status = "okay";
}
3.2.4. RGMII Clock Input
&gmac {
+ phy-mode = "rgmii";
+ clock_in_out = "Output";
snps,reset-gpio = <&gpio3 RK_PA0 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru CLK_GMAC_SRC>, <&cru CLK_GMAC_TX_RX>, <&cru CLK_GMAC_ETHERNET_OUT>;
+ assigned-clock-parents = <&cru CLK_GMAC_SRC_M0>, <&cru RGMII_MODE_CLK>;
+ assigned-clock-rates = <125000000>, <0>, <25000000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rgmii0_miim &rgmii0_bus2 &rgmii0_bus4 &clkm0_out_ethernet>;
tx_delay = <0x2a>;
rx_delay = <0x1a>;
phy-handle = <&phy>;
status = "okay";
};
&mdio {
phy: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
+ clocks = <&cru CLK_GMAC_ETHERNET_OUT>;
};
};
3.3 RK3128
3.3.1. RMII Clock Output
&gmac {
assigned-clocks = <&cru SCLK_MAC_SRC>;
+ assigned-clock-rates = <50000000>;
+ clock_in_out = "output";
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmii_pins>;
phy-supply = <&vcc_phy>;
+ phy-mode = "rmii";
snps,reset-active-low;
snps,reset-delays-us = <0 10000 50000>;
snps,reset-gpio = <&gpio2 24 GPIO_ACTIVE_LOW>;
status = "okay";
};
3.3.2 RMII Clock Input
+&clkin_gmac {
+ clock-frequency = <50000000>;
+};
&gmac {
+ assigned-clocks = <&cru SCLK_MAC>;
+ assigned-clock-parents = <&clkin_gmac>;
+ clock_in_out = "input";
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmii_pins>;
phy-supply = <&vcc_phy>;
+ phy-mode = "rmii";
snps,reset-active-low;
snps,reset-delays-us = <0 10000 50000>;
snps,reset-gpio = <&gpio2 24 GPIO_ACTIVE_LOW>;
status = "okay";
};
3.3.3 RGMII Clock Input
&gmac {
+ assigned-clocks = <&cru SCLK_MAC>;
+ assigned-clock-parents = <&clkin_gmac>;
+ clock_in_out = "input";
+ pinctrl-names = "default";
+ pinctrl-0 = <&rgmii_pins>;
phy-supply = <&vcc_phy>;
+ phy-mode = "rgmii";
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
snps,reset-gpio = <&gpio2 24 GPIO_ACTIVE_LOW>;
tx_delay = <0x30>;
rx_delay = <0x16>;
status = "okay";
};
3.4 RK3228
3.4.1 RMII Clock Output
&gmac {
assigned-clocks = <&cru SCLK_MAC_EXTCLK>, <&cru SCLK_MAC>;
+ assigned-clock-parents = <&ext_gmac>, <&cru SCLK_MAC_EXTCLK>;
+ assigned-clock-rates = <0>, <50000000>;
+ clock_in_out = "output";
phy-supply = <&vcc_phy>;
+ phy-mode = "rmii";
pinctrl-names = "default";
pinctrl-0 = <&rmii_pins>;
snps,reset-gpio = <&gpio2 RK_PD0 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
status = "okay";
};
3.42 RMII Clock Input
+&ext_gmac: external-gmac-clock {
+ clock-frequency = <50000000>;
+}
&gmac {
assigned-clocks = <&cru SCLK_MAC_EXTCLK>, <&cru SCLK_MAC>;
+ assigned-clock-parents = <&ext_gmac>, <&cru SCLK_MAC_EXTCLK>;
+ clock_in_out = "input";
phy-supply = <&vcc_phy>;
+ phy-mode = "rmii";
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmii_pins>;
snps,reset-gpio = <&gpio2 RK_PD0 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
status = "okay";
}
3.4.3 RGMII Clock Output
&gmac {
+ assigned-clocks = <&cru SCLK_MAC_EXTCLK>, <&cru SCLK_MAC>;
+ assigned-clock-parents = <&ext_gmac>, <&cru SCLK_MAC_EXTCLK>;
+ assigned-clock-rates = <0>, <125000000>;
+ clock_in_out = "output";
phy-supply = <&vcc_phy>;
+ phy-mode = "rgmii";
+ pinctrl-names = "default";
+ pinctrl-0 = <&rgmii_pins>;
snps,reset-gpio = <&gpio2 RK_PD0 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
tx_delay = <0x30>;
rx_delay = <0x10>;
status = "okay";
};
3.4.4 RGMII Clock Input
&gmac {
+ assigned-clocks = <&cru SCLK_MAC_EXTCLK>, <&cru SCLK_MAC>;
+ assigned-clock-parents = <&ext_gmac>, <&cru SCLK_MAC_EXTCLK>;
+ clock_in_out = "input";
phy-supply = <&vcc_phy>;
+ phy-mode = "rgmii";
+ pinctrl-names = "default";
+ pinctrl-0 = <&rgmii_pins>;
snps,reset-gpio = <&gpio2 RK_PD0 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
tx_delay = <0x30>;
rx_delay = <0x10>;
status = "okay";
};
3.4.5 Internal EPHY
&gmac {
+ assigned-clocks = <&cru SCLK_MAC_SRC>;
+ assigned-clock-rates = <5000000>;
+ clock_in_out = "output";
phy-supply = <&vcc_phy>;
+ phy-mode = "rmii";
phy-handle = <&phy>;
status = "okay";
mdio {
compatible = "snps,dwmac-mdio";
#address-cells = <1>;
#size-cells = <0>;
phy: ethernet-phy@0 {
compatible = "ethernet-phy-id1234.d400", "ethernet-phy-ieee802.3-c22";
reg = <0>;
clocks = <&cru SCLK_MAC_PHY>;
resets = <&cru SRST_MACPHY>;
phy-is-integrated;
};
};
};
3.5 RK3288
3.5.1 RMII Clock Output
&gmac {
phy-supply = <&vcc_phy>;
+ phy-mode = "rmii";
+ clock_in_out = "output";
+ assigned-clocks = <&cru SCLK_MAC>;
+ assigned-clock-rates = <5000000>;
snps,reset-gpio = <&gpio4 RK_PA7 GPIO_ACTIVE_HIGH>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 1000000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmii_pins>;
status = "okay";
};
3.5.2 RMII Clock Input
+&ext_gmac: external-gmac-clock {
+ clock-frequency = <50000000>;
+}
&gmac {
phy-supply = <&vcc_phy>;
+ phy-mode = "rmii";
+ clock_in_out = "input";
+ assigned-clocks = <&cru SCLK_MAC>;
+ assigned-clock-parents = <&ext_gmac>;
snps,reset-gpio = <&gpio4 RK_PA7 GPIO_ACTIVE_HIGH>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmii_pins>;
status = "okay";
}
3.5.3 RGMII Clock Input
&gmac {
phy-supply = <&vcc_phy>;
+ phy-mode = "rgmii";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio4 RK_PA7 GPIO_ACTIVE_HIGH>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru SCLK_MAC>;
+ assigned-clock-parents = <&ext_gmac>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rgmii_pins>;
tx_delay = <0x30>;
rx_delay = <0x10>;
status = "okay";
}
3.6 RK3328
3.6.1 RMII Clock Output
&gmac2io {
phy-supply = <&vcc_phy>;
+ phy-mode = "rmii";
+ clock_in_out = "output";
+ assigned-clocks = <&cru SCLK_MAC2IO>;
+ assigned-clock-rates = <5000000>;
snps,reset-gpio = <&gpio1 RK_PC2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmiiml_pins>;
status = "okay";
}
3.6.2 RMII Clock Input
+&clkin_gmac {
+ clock-frequency = <5000000>;
+}
&gmac2io {
phy-supply = <&vcc_phy>;
+ phy-mode = "rmii";
+ clock_in_out = "input";
+ assigned-clocks = <&cru SCLK_MAC2IO>, <&cru SCLK_MAC2IO_EXT>;
+ assigned-clock-parents = <&gmac_clkin>, <&gmac_clkin>;
snps,reset-gpio = <&gpio1 RK_PC2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmiiml_pins>;
status = "okay";
}
3.6.3 RGMII Clock Input
&gmac2io {
phy-supply = <&vcc_phy>;
+ phy-mode = "rgmii";
+ clock_in_out = "input";
+ assigned-clocks = <&cru SCLK_MAC2IO>, <&cru SCLK_MAC2IO_EXT>;
+ assigned-clock-parents = <&gmac_clkin>, <&gmac_clkin>;
snps,reset-gpio = <&gpio1 RK_PC2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rgmiiml_pins>;
tx_delay = <0x26>;
rx_delay = <0x11>;
status = "okay";
}
3.6.4 Internal EPHY
&gmac2phy {
phy-supply = <&vcc_phy>;
+ clock_in_out = "output";
+ assigned-clocks = <&cru SCLK_MAC2PHY_SRC>;
+ assigned-clock-rate = <5000000>;
+ assigned-clocks = <&cru SCLK_MAC2PHY>;
+ assigned-clock-parents = <&cru SCLK_MAC2PHY_SRC>;
status = "okay";
}
3.7 RK3368
3.7.1 RMII Clock Output
&gmac {
phy-supply = <&vcc_lan>;
+ phy-mode = "rmii";
+ clock_in_out = "output";
+ assigned-clocks = <&cru SCLK_MAC>;
+ assigned-clock-rates = <5000000>;
snps,reset-gpio = <&gpio3 12 0>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmii_pins>;
status = "ok";
}
3.7.2 RMII Clock Input
+&ext_gmac {
+ clock-frequency = <50000000>;
+}
&gmac {
phy-supply = <&vcc_lan>;
+ phy-mode = "rmii";
+ clock_in_out = "input";
+ assigned-clocks = <&cru SCLK_MAC>;
+ assigned-clock-parents = <&ext_gmac>;
snps,reset-gpio = <&gpio3 12 0>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmiipins>;
status = "ok";
}
3.7.3 RGMII Clock Input
&gmac {
phy-supply = <&vcc_lan>;
+ phy-mode = "rmii";
+ clock_in_out = "input";
+ assigned-clocks = <&cru SCLK_MAC>;
+ assigned-clock-parents = <&ext_gmac>;
snps,reset-gpio = <&gpio3 12 0>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmii_pins>;
status = "okay";
}
3.8 RK3399
3.8.1 RMII Clock Output
&gmac {
assigned-clocks = <&cru SCLK_MAC>;
+ assigned-clock-rates = <5000000>;
+ clock_in_out = "output";
phy-supply = <&vcc_phy>;
+ phy-mode = "rmii";
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmii_pins>;
snps,reset-gpio = <&gpio3 RK_PB7 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
status = "okay";
}
3.8.2 RMII Clock Input
+&clkin_gmac {
+ clock-frequency = <5000000>;
+}
&gmac {
assigned-clocks = <&cru SCLK_RMII_SRC>;
+ assigned-clock-parents = <&clkin_gmac>;
+ clock_in_out = "input";
phy-supply = <&vcc_phy>;
+ phy-mode = "rmii";
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmii_pins>;
snps,reset-gpio = <&gpio3 RK_PB7 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
status = "okay";
}
3.8.3 RGMII Clock Input
&gmac {
assigned-clocks = <&cru SCLK_RMII_SRC>;
+ assigned-clock-parents = <&clkin_gmac>;
+ clock_in_out = "input";
phy-supply = <&vcc_phy>;
+ phy-mode = "rgmii";
+ pinctrl-names = "default";
+ pinctrl-0 = <&rgmii_pins>;
snps,reset-gpio = <&gpio3 RK_PB7 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
tx_delay = <0x28>;
rx_delay = <0x11>;
status = "okay";
}
3.9 RK3568
3.9.1. RMII Clock Output
gmac0:
&gmac0 {
phy-mode = "rmii";
+ clock_in_out = "output";
+ assigned-clocks = <&cru SCLK_GMAC0_RX_TX>, <&cru SCLK_GMAC0>;
+ assigned-clock-parents = <&cru SCLK_GMAC0_RMII_SPEED>;
+ assigned-clock-rates = <0>, <50000000>;
snps,reset-gpio = <&gpio3 RK_PC2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
pinctrl-names = "default";
pinctrl-0 = <&gmac0_miim &gmac0_clkinout &gmac0_rx_bus2 &gmac0_tx_bus2>;
phy-handle = <&rmiiphy0>;
status = "okay";
}
&mdio0 {
rmiiphy0: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
gmac1m0:
&gmac1 {
+ phy-mode = "rmii";
+ clock_in_out = "output";
+ assigned-clocks = <&cru SCLK_GMAC1_RX_TX>, <&cru SCLK_GMAC1>;
+ assigned-clock-parents = <&cru SCLK_GMAC1_RMII_SPEED>;
+ assigned-clock-rates = <0>, <50000000>;
snps,reset-gpio = <&gpio3 RK_PC2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac1m0_miim &gmac1m0_clkinout &gmac1m0_rx_bus2 &gmac1m0_tx_bus2>;
phy-handle = <&rmiiphy1>;
status = "okay";
}
&mdio1 {
rmiiphy1: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
gmac1m1:
&gmac1 {
+ phy-mode = "rmii";
+ clock_in_out = "output";
+ assigned-clocks = <&cru SCLK_GMAC1_RX_TX>, <&cru SCLK_GMAC1>;
+ assigned-clock-parents = <&cru SCLK_GMAC1_RMII_SPEED>;
+ assigned-clock-rates = <0>, <50000000>;
snps,reset-gpio = <&gpio3 RK_PC2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac1m1_miim &gmac1m1_clkinout &gmac1m1_rx_bus2 &gmac1m1_tx_bus2>;
phy-handle = <&rmiiphy1>;
status = "okay";
}
&mdio1 {
rmiiphy1: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
3.9.2 RMII Clock Input
gmac0
+&gmac0_clkin{
+ clock-frequency = <50000000>;
+}
&gmac0 {
+ phy-mode = "rmii";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio3 RK_PC2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru SCLK_GMAC0_RX_TX>, <&cru SCLK_GMAC0>;
+ assigned-clock-parents = <&cru SCLK_GMAC0_RMII_SPEED>, <&gmac0_clkin>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac0_miim &gmac0_clkinout &gmac0_rx_bus2 &gmac0_tx_bus2>;
phy-handle = <&rmiiphy0>;
status = "okay";
}
&mdio0 {
rmiiphy0: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
gmac1m0:
+&gmac1_clkin{
+ clock-frequency = <50000000>;
+}
&gmac1 {
+ phy-mode = "rmii";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio3 RK_PC2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru SCLK_GMAC1_RX_TX>, <&cru SCLK_GMAC1>;
+ assigned-clock-parents = <&cru SCLK_GMAC1_RMII_SPEED>, <&gmac1_clkin>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac1m0_miim &gmac1m0_clkinout &gmac1m0_rx_bus2 &gmac1m0_tx_bus2>;
phy-handle = <&rmiiphy1>;
status = "okay";
}
&mdio1 {
rmiiphy1: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
gmac1m1:
+&gmac1_clkin{
+ clock-frequency = <50000000>;
+}
&gmac1 {
+ phy-mode = "rmii";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio3 RK_PC2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru SCLK_GMAC1_RX_TX>, <&cru SCLK_GMAC1>;
+ assigned-clock-parents = <&cru SCLK_GMAC1_RMII_SPEED>, <&gmac1_clkin>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac1m1_miim &gmac1m1_clkinout &gmac1m1_rx_bus2 &gmac1m1_tx_bus2>;
phy-handle = <&rmiiphy1>;
status = "okay";
}
&mdio1 {
rmiiphy1: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
3.9.3 RGMII PLL output 25M for PHY, PLL output 125M for TX_CLK
gmac0:
&gmac0 {
+ phy-mode = "rgmii";
+ clock_in_out = "output";
+ assigned-clocks = <&cru SCLK_GMAC0_RX_TX>, <&cru SCLK_GMAC0>, <&cru SCLK_GMAC0_OUT>;
+ assigned-clock-parents = <&cru SCLK_GMAC0_RGMII_SPEED>;
+ assigned-clock-rates = <0>, <125000000>, <25000000>;
snps,reset-gpio = <&gpio2 RK_PD3 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac0_mim &gmac0_tx_bus2 &gmac0_rx_bus2 &gmac0_rgmii_clk &gmac0_rgmii_bus ð0_pins>;
tx_delay = <0x3c>;
rx_delay = <0x2f>;
phy-handle = <&rgmii_phy0>;
status = "okay";
}
&mdio0 {
rgmii_phy0: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
+ clocks = <&cru CLK_GMAC0_OUT>;
};
}
gmac1m0:
&gmac1 {
+ phy-mode = "rgmii";
+ clock_in_out = "output";
snps,reset-gpio = <&gpio2 RK_PD1 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru SCLK_GMAC1_RX_TX>, <&cru SCLK_GMAC1>, <&cru CLK_GMAC1_OUT>;
+ assigned-clock-parents = <&cru SCLK_GMAC1_RGMII_SPEED>;
+ assigned-clock-rates = <0>, <125000000>, <25000000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac1m0_mim &gmac1m0_tx_bus2 &gmac1m0_rx_bus2 &gmac1m0_rgmii_clk &gmac1m0_rgmii_bus ð1m0_pins>;
tx_delay = <0x4f>;
rx_delay = <0x26>;
phy-handle = <&rgmii_phy1>;
status = "okay";
}
&mdio1 {
rgmii_phy1: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
+ clocks = <&cru CLK_GMAC1_OUT>;
};
}
gmac1m1:
&gmac1 {
+ phy-mode = "rgmii";
+ clock_in_out = "output";
snps,reset-gpio = <&gpio2 RK_PD1 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru SCLK_GMAC1_RX_TX>, <&cru SCLK_GMAC1>, <&cru CLK_GMAC1_OUT>;
+ assigned-clock-parents = <&cru SCLK_GMAC1_RGMII_SPEED>;
+ assigned-clock-rates = <0>, <125000000>, <25000000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac1m1_miim &gmac1m1_tx_bus2 &gmac1m1_rx_bus2 &gmac1m1_rgmii_clk &gmac1m1_rgmii_bus ð1m1_pins>;
tx_delay = <0x4f>;
rx_delay = <0x26>;
phy-handle = <&rgmii_phy1>;
status = "okay";
}
&mdio1 {
rgmii_phy1: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
+ clocks = <&cru CLK_GMAC1_OUT>;
};
}
3.9.4 RGMII PLL output 25M for PHY, RGMII_CLK input 125M for TX_CLK
gmac0:
&gmac0 {
+ phy-mode = "rgmii";
+ clock_in_out = "input";
+ assigned-clocks = <&cru SCLK_GMAC0_RX_TX>, <&cru SCLK_GMAC0>, <&cru CLK_GMAC0_OUT>;
+ assigned-clock-parents = <&cru SCLK_GMAC0_RGMII_SPEED>, <&gmac0_clkin>;
+ assigned-clock-rates = <0>, <125000000>, <25000000>;
snps,reset-gpio = <&gpio2 RK_PD3 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac0_miim &gmac0_tx_bus2 &gmac0_rx_bus2 &gmac0_rgmii_clk &gmac0_rgmii_bus ð0_pins &gmac0_clkinout>;
tx_delay = <0x3c>;
rx_delay = <0x2f>;
phy-handle = <&rgmii_phy0>;
status = "okay";
}
&mdio0 {
rgmii_phy0: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
+ clocks = <&cru CLK_GMAC0_OUT>;
};
}
gmac1m0
&gmac1 {
+ phy-mode = "rgmii";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio2 RK_PD1 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru SCLK_GMAC1_RX_TX>, <&cru SCLK_GMAC1>, <&cru CLK_GMAC1_OUT>;
+ assigned-clock-parents = <&cru SCLK_GMAC1_RGMII_SPEED>, <&gmac1_clkin>;
+ assigned-clock-rates = <0>, <125000000>, <25000000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac1m0_miim &gmac1m0_tx_bus2 &gmac1m0_rx_bus2 &gmac1m0_rgmii_clk &gmac1m0_rgmii_bus ð1m0_pins &gmac1m0_clkinout>;
tx_delay = <0x4f>;
rx_delay = <0x26>;
phy-handle = <&rgmii_phy1>;
status = "okay";
}
&mdio0 {
rgmii_phy1: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
+ clocks = <&cru CLK_GMAC0_OUT>;
};
}
gmac1m1
&gmac1 {
+ phy-mode = "rgmii";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio2 RK_PD1 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru SCLK_GMAC1_RX_TX>, <&cru SCLK_GMAC1>, <&cru CLK_GMAC1_OUT>;
+ assigned-clock-parents = <&cru SCLK_GMAC1_RGMII_SPEED>, <&gmac1_clkin>;
+ assigned-clock-rates = <0>, <125000000>, <25000000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac1m1_miim &gmac1m1_tx_bus2 &gmac1m1_rx_bus2 &gmac1m1_rgmii_clk &gmac1m1_rgmii_bus ð1m1_pins &gmac1m1_clkinout>;
tx_delay = <0x4f>;
rx_delay = <0x26>;
phy-handle = <&rgmii_phy1>;
status = "okay";
}
&mdio1 {
rgmii_phy1: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
+ clocks = <&cru CLK_GMAC1_OUT>;
};
}
3.9.5 RGMII Crystal 25M for PHY, PLL output 125M for TX_CLK
gmac0
&gmac0 {
+ phy-mode = "rgmii";
+ clock_in_out = "output";
+ assigned-clocks = <&cru SCLK_GMAC0_RX_TX>, <&cru SCLK_GMAC0>;
+ assigned-clock-parents = <&cru SCLK_GMAC0_RGMII_SPEED>;
+ assigned-clock-rates = <0>, <125000000>;
snps,reset-gpio = <&gpio2 RK_PD3 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac0_miim &gmac0_tx_bus2 &gmac0_rx_bus2 &gmac0_rgmii_clk &gmac0_rgmii_bus>;
tx_delay = <0x3c>;
rx_delay = <0x2f>;
phy-handle = <&rgmii_phy0>;
status = "okay";
}
&mdio0 {
rgmii_phy0: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
gmac1m0
&gmac1 {
+ phy-mode = "rgmii";
+ clock_in_out = "output";
snps,reset-gpio = <&gpio2 RK_PD1 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru SCLK_GMAC1_RX_TX>, <&cru SCLK_GMAC1>;
+ assigned-clock-parents = <&cru SCLK_GMAC1_RGMII_SPEED>;
+ assigned-clock-rates = <0>, <125000000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac1m0_miim &gmac1m0_tx_bus2 &gmac1m0_rx_bus2 &gmac1m0_rgmii_clk &gmac1m0_rgmii_bus>;
tx_delay = <0x4f>;
rx_delay = <0x26>;
phy-handle = <&rgmii_phy1>;
status = "okay";
}
&mdio1 {
rgmii_phy1: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
gmac1m1
&gmac1 {
+ phy-mode = "rgmii";
+ clock_in_out = "output";
snps,reset-gpio = <&gpio2 RK_PD1 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru SCLK_GMAC1_RX_TX>, <&cru SCLK_GMAC1>;
+ assigned-clock-parents = <&cru SCLK_GMAC1_RGMII_SPEED>;
+ assigned-clock-rates = <0>, <125000000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac1m1_miim &gmac1m1_tx_bus2 &gmac1m1_rx_bus2 &gmac1m1_rgmii_clk &gmac1m1_rgmii_bus>;
tx_delay = <0x4f>;
rx_delay = <0x26>;
phy-handle = <&rgmii_phy1>;
status = "okay";
}
&mdio1 {
rgmii_phy1: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
3.9.6 RGMII Crystal 25M for PHY, RGMII_CLK input 125M for TX_CLK
gmac0
&gmac0 {
+ phy-mode = "rgmii";
+ clock_in_out = "input";
+ assigned-clocks = <&cru SCLK_GMAC0_RX_TX>, <&cru SCLK_GMAC0>;
+ assigned-clock-parents = <&cru SCLK_GMAC0_RGMII_SPEED>, <&gmac0_clkin>;
+ assigned-clock-rates = <0>, <125000000>;
snps,reset-gpio = <&gpio2 RK_PD3 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac0_miim &gmac0_tx_bus2 &gmac0_rx_bus2 &gmac0_rgmii_clk &gmac0_rgmii_bus &gmac0_clkinout>;
tx_delay = <0x3c>;
rx_delay = <0x2f>;
phy-handle = <&rgmii_phy0>;
status = "okay";
}
&mdio0 {
rgmii_phy0: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
gmac1m0
&gmac1 {
+ phy-mode = "rgmii";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio2 RK_PD1 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru SCLK_GMAC1_RX_TX>, <&cru SCLK_GMAC1>;
+ assigned-clock-parents = <&cru SCLK_GMAC1_RGMII_SPEED>, <&gmac1_clkin>;
+ assigned-clock-rates = <0>, <125000000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac1m0_miim &gmac1m0_tx_bus2 &gmac1m0_rx_bus2 &gmac1m0_rgmii_clk &gmac1m0_rgmii_bus &gmac1m0_clkinout>;
tx_delay = <0x4f>;
rx_delay = <0x26>;
phy-handle = <&rgmii_phy1>;
status = "okay";
}
&mdio1 {
rgmii_phy1: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
gmac1m1
&gmac1 {
+ phy-mode = "rgmii";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio2 RK_PD1 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru SCLK_GMAC1_RX_TX>, <&cru SCLK_GMAC1>;
+ assigned-clock-parents = <&cru SCLK_GMAC1_RGMII_SPEED>, <&gmac1_clkin>;
+ assigned-clock-rates = <0>, <125000000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac1m1_miim &gmac1m1_tx_bus2 &gmac1m1_rx_bus2 &gmac1m1_rgmii_clk &gmac1m1_rgmii_bus &gmac1m1_clkinout>;
tx_delay = <0x4f>;
rx_delay = <0x26>;
phy-handle = <&rgmii_phy1>;
status = "okay";
}
&mdio1 {
rgmii_phy1: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
3.9.7 SGMII
DTS 除了配置 gmac 和 mac phy 节点外，还需要配置 xpcs 和 combophy 节点。
combophy
其中属性,表示使用的是哪个 gmac：
&combphy1_usq {
+ rockchip,sgmii-mac-sel = <0>; /* Use gmac0 for sgmii */
status = "okay";
};
xpcs
&xpcs {
status = "okay";
};
gmac0
&gmac0 {
phy-mode = "sgmii";
rockchip,pipegrf = <&pipegrf>;
rockchip,xpcs = <&xpcs>;
snps,reset-gpio = <&gpio2 RK_PC2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
assigned-clocks = <&cru SCLK_GMAC0_RX_TX>;
assigned-clock-parents = <&gmac0_xpcsclk>;
pinctrl-names = "default";
pinctrl-0 = <&gmac0_miim>;
power-domains = <&power RK3568_PD_PIPE>;
phys = <&combphy1_usq PHY_TYPE_SGMII>;
phy-handle = <&sgmii_phy>;
status = "okay";
}
&mdio0 {
sgmii_phy: phy@1 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x1>;
};
}
gmac1
&gmac1 {
phy-mode = "sgmii";
rockchip,pipegrf = <&pipegrf>;
rockchip,xpcs = <&xpcs>;
snps,reset-gpio = <&gpio2 RK_PC2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
assigned-clocks = <&cru SCLK_GMAC1_RX_TX>;
assigned-clock-parents = <&gmac1_xpcsclk>;
pinctrl-names = "default";
pinctrl-0 = <&gmac1_miim>;
power-domains = <&power RK3568_PD_PIPE>;
phys = <&combphy1_usq PHY_TYPE_SGMII>;
phy-handle = <&sgmii_phy>;
status = "okay";
}
&mdio1 {
sgmii_phy: phy@1 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x1>;
};
}
3.9.8 QSGMII
同 SGMIIl 类似，DTS 除了配置 gmac 和 mac phy 节点外，还需要配置 xpcs 和 combophy 节点。
combophy
&combphy2_psq {
status = "okay";
};
xpcs
&xpcs {
status = "okay";
};
&gmac0 {
phy-supply = <&pcie20_3v3>;
phy-mode = "qsgmii";
rockchip,xpcs = <&xpcs>;
snps,reset-gpio = <&gpio2 RK_PC2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
assigned-clocks = <&cru SCLK_GMAC0_RX_TX>;
assigned-clock-parents = <&gmac0_xpcsclk>;
pinctrl-names = "default";
pinctrl-0 = <&gmac0_miim>;
power-domains = <&power RK3568_PD_PIPE>;
phys = <&combphy2_psq PHY_TYPE_QSGMII>;
phy-handle = <&qsgmii_phy0>;
status = "okay";
};
&gmac1 {
phy-supply = <&pcie20_3v3>;
phy-mode = "qsgmii";
assigned-clocks = <&cru SCLK_GMAC1_RX_TX>;
assigned-clock-parents = <&gmac1_xpcsclk>;
power-domains = <&power RK3568_PD_PIPE>;
phy-handle = <&qsgmii_phy1>;
status = "okay";
};
&mdio0 {
qsgmii_phy0: phy@0 {
compatible = "ethernet-phy-id001c.c942", "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
qsgmii_phy1: phy@1 {
compatible = "ethernet-phy-id001c.c942", "ethernet-phy-ieee802.3-c22";
reg = <0x1>;
};
qsgmii_phy2: phy@2 {
compatible = "ethernet-phy-id001c.c942", "ethernet-phy-ieee802.3-c22";
reg = <0x2>;
};
qsgmii_phy3: phy@3 {
compatible = "ethernet-phy-id001c.c942", "ethernet-phy-ieee802.3-c22";
reg = <0x3>;
};
};
3.10 RK3588
3.10.1 RMII Clock Output
gmac0
&gmac0 {
+ phy-mode = "rmi";
+ clock_in_out = "output";
snps,reset-gpio = <&gpio4 RK_PB3 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac0_miim &gmac0_tx_bus2 &gmac0_rx_bus2 &gmac0_clkinout>;
phy-handle = <&rmi_phy>;
status = "okay";
}
&mdio0 {
rmi_phy: phy@1 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x1>;
};
}
gmac1:
&gmac1 {
+ phy-mode = "rmi";
+ clock_in_out = "output";
snps,reset-gpio = <&gpio3 RK_PB2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac1_miim &gmac1_tx_bus2 &gmac1_rx_bus2 &gmac1_clkinout>;
phy-handle = <&rmi_phy>;
status = "okay";
}
&mdio1 {
rmi_phy: phy@1 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x1>;
};
}
3.10.2 RMII Clock Input
gmac0:
&gmac0 {
+ phy-mode = "rmi";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio4 RK_PB3 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac0_miim &gmac0_tx_bus2 &gmac0_rx_bus2 &gmac0_clkinout>;
phy-handle = <&rmi_phy>;
status = "okay";
}
&mdio0 {
rmi_phy: phy@1 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x1>;
};
}
gmac1:
&gmac1 {
+ phy-mode = "rmi";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio3 RK_PB2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac1_miim &gmac1_tx_bus2 &gmac1_rx_bus2 &gmac1_clkinout>;
phy-handle = <&rmi_phy>;
status = "okay";
}
&mdio1 {
rmi_phy: phy@1 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x1>;
};
}
3.10.3RGMII PLL output 25M for PHY, PLL output 125M for TX_CLK
gmac0
&gmac0 {
/* Use rgmi-rxid mode to disable rx delay inside Soc */
+ phy-mode = "rgmi-rxid";
+ clock_in_out = "output";
snps,reset-gpio = <&gpio4 RK_PB3 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac0_miim &gmac0_tx_bus2 &gmac0_rx_bus2 &gmac0_rgmii_clk &gmac0_rgmii_bus ð0_pins>;
tx_delay = <0x45>;
/* rx_delay = <0x43>; */
phy-handle = <&rgmi_phy>;
status = "okay";
}
&mdio0 {
rgmi_phy: phy@1 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x1>;
+ clocks = <&cru REFCLK025M_ETH0_OUT>;
};
}
gmac1
&gmac1 {
/* Use rgmi-rxid mode to disable rx delay inside Soc */
+ phy-mode = "rgmi-rxid";
+ clock_in_out = "output";
snps,reset-gpio = <&gpio3 RK_PB2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac1_miim &gmac1_tx_bus2 &gmac1_rx_bus2 &gmac1_rgmii_clk &gmac1_rgmii_bus ð1_pins>;
tx_delay = <0x45>;
/* rx_delay = <0x43>; */
phy-handle = <&rgmi_phy>;
status = "okay";
}
&mdio1 {
rgmi_phy: phy@1 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x1>;
+ clocks = <&cru REFCLK025M_ETH0_OUT>;
};
}
3.10.4 RGMII PLL output 25M for PHY, RGMII_CLK input 125M for TX_CLK
gmac0
&gmac0 {
/* Use rgmi-rxid mode to disable rx delay inside Soc */
+ phy-mode = "rgmi-rxid";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio4 RK_PB3 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac0_miim &gmac0_tx_bus2 &gmac0_rx_bus2 &gmac0_rgmii_clk &gmac0_rgmii_bus &gmac0_clkinout ð0_pins>;
tx_delay = <0x45>;
/* rx_delay = <0x43>; */
phy-handle = <&rgmi_phy>;
status = "okay";
}
&mdio0 {
rgmi_phy: phy@1 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x1>;
+ clocks = <&cru REFCLK025M_ETH0_OUT>;
};
}
gmac1
&gmac1 {
/* Use rgmi-rxid mode to disable rx delay inside Soc */
+ phy-mode = "rgmi-rxid";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio3 RK_PB2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac1_miim &gmac1_tx_bus2 &gmac1_rx_bus2 &gmac1_rgmii_clk &gmac1_rgmii_bus &gmac1_clkinout ð1_pins>;
tx_delay = <0x45>;
/* rx_delay = <0x43>; */
phy-handle = <&rgmi_phy>;
status = "okay";
}
&mdio1 {
rgmi_phy: phy@1 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x1>;
+ clocks = <&cru REFCLK025M_ETH0_OUT>;
};
}
3.10.5 RGMII Crystal 25M for PHY, PLL output 125M for TX_CLK
gmac0
&gmac0 {
/* Use rgmi-rxid mode to disable rx delay inside Soc */
+ phy-mode = "rgmi-rxid";
+ clock_in_out = "output";
snps,reset-gpio = <&gpio4 RK_PB3 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac0_miim &gmac0_tx_bus2 &gmac0_rx_bus2 &gmac0_rgmii_clk &gmac0_rgmii_bus>;
tx_delay = <0x45>;
/* rx_delay = <0x43>; */
phy-handle = <&rgmi_phy>;
status = "okay";
}
&mdio0 {
rgmi_phy: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
gmac1
&gmac1 {
/* Use rgmi-rxid mode to disable rx delay inside Soc */
+ phy-mode = "rgmi-rxid";
+ clock_in_out = "output";
snps,reset-gpio = <&gpio3 RK_PB2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac0_miim &gmac1_rx_bus2 &gmac1_rgmii_clk &gmac1_rgmii_bus>;
tx_delay = <0x45>;
/* rx_delay = <0x43>; */
phy-handle = <&rgmi_phy>;
status = "okay";
}
&mdio1 {
rgmi_phy: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
3.10.6 RGMII Crystal 25M for PHY, RGMII_CLK input 125M for TX_CLK
gmac0
&gmac0 {
/* Use rgmi-rxid mode to disable rx delay inside Soc */
+ phy-mode = "rgmi-rxid";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio4 RK_PB3 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac0_miim &gmac0_tx_bus2 &gmac0_rx_bus2 &gmac0_rgmii_clk &gmac0_rgmii_bus &gmac0_clkinout>;
tx_delay = <0x45>;
/* rx_delay = <0x43>; */
phy-handle = <&rgmi_phy>;
status = "okay";
}
&mdio0 {
rgmi_phy: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
gmac1
&gmac1 {
/* Use rgmi-rxid mode to disable rx delay inside Soc */
+ phy-mode = "rgmi-rxid";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio3 RK_PB2 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&gmac0_miim &gmac1_tx_bus2 &gmac1_rx_bus2 &gmac1_rgmii_clk &gmac1_rgmii_bus &gmac1_clkinout>;
tx_delay = <0x45>;
/* rx_delay = <0x43>; */
phy-handle = <&rgmi_phy>;
status = "okay";
}
&mdio1 {
rgmi_phy: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
3.11 RV1108
3.11.1 RMII Clock Input
&gmac_clk: gmac_clkin {
+ compatible = "fixed-clock";
+ clock-output-names = "gmac_clkin";
+ clock-frequency = <50000000>;
+ #clock-cells = <0>;
}
&gmac {
+ phy-mode = "rmi";
+ clock_in_out = "input";
+ assigned-clocks = <&cru SCLK_MAC>;
+ assigned-clock-parents = <assigned-clock_mac_clkin>;
snps,reset-gpio = <&gpio3 12>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmi_pins>;
status = "ok";
}
3.11.2 RMII Clock Output
&gmac {
+ phy-mode = "rmi";
+ clock_in_out = "output";
+ assigned-clocks = <&cru SCLK_MAC>;
+ assigned-clock-rates = <5000000>;
snps,reset-gpio = <&gpio3 12>;
snps,reset-active-low;
snps,reset-delays-us = <0 20000 100000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmi_pins>;
status = "ok";
}
3.12 RV1126
RGMII PLL output 25M for PHY, PLL output 125M for TX_CLK
gmac m0
&gmac {
+ phy-mode = "rgmi";
+ clock_in_out = "output";
snps,reset-gpio = <&gpio3 RK_PA0 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru CLK_GMAC_SRC>, <&cru CLK_GMAC_TX_RX>, <&cru CLK_GMAC_ETHERNET_OUT>;
+ assigned-clock-parents = <&cru CLK_GMAC_SRC_MD>, <&cru RGMII_MODE_CLK>;
+ assigned-clock-rates = <125000000>, <0>, <25000000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rgmii0_miim &rgmii0_bus2 &rgmii0_bus4 &clkm0_out_ethernet>;
tx_delay = <0x2a>;
rx_delay = <0x1a>;
phy-handle = <&phy>;
status = "okay";
}
&mdio {
phy: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
+ clocks = <&cru CLK_GMAC_ETHERNET_OUT>;
};
}
gmac m1
&gmac {
+ phy-mode = "rgmi";
+ clock_in_out = "output";
snps,reset-gpio = <&gpio3 RK_PA0 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru CLK_GMAC_SRC>, <&cru CLK_GMAC_TX_RX>, <&cru CLK_GMAC_ETHERNET_OUT>;
+ assigned-clock-parents = <&cru CLK_GMAC_SRC_M1>, <&cru RGMII_MODE_CLK>;
+ assigned-clock-rates = <125000000>, <0>, <25000000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rgmii1_miim &rgmii1_bus2 &rgmii1_bus4 &clkm1_out_ethernet>;
tx_delay = <0x2a>;
rx_delay = <0x1a>;
phy-handle = <&phy>;
status = "okay";
}
&mdio {
phy: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
+ clocks = <&cru CLK_GMAC_ETHERNET_OUT>;
};
}
3.12.2 RGMII PLL output 25M for PHY, RGMII Clock input 125M for TX_CLK
gmac m0
&gmac {
+ phy-mode = "rgmi";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio3 RK_PA0 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru CLK_GMAC_SRC>, <&cru CLK_GMAC_TX_RX>, <&cru CLK_GMAC_ETHERNET_OUT>;
+ assigned-clock-parents = <&cru CLK_GMAC_SRC_M0>, <&cru RGMII_MODE_CLK>;
+ assigned-clock-rates = <125000000>, <0>, <25000000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rgmii0_miim &rgmii0_bus2 &rgmii0_bus4 &clkm0_out_ethernet>;
tx_delay = <0x2a>;
rx_delay = <0x1a>;
phy-handle = <&phy>;
status = "okay";
}
&mdio {
phy: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
+ clocks = <&cru CLK_GMAC_ETHERNET_OUT>;
};
}
gmac m1
&gmac {
+ phy-mode = "rgmi";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio3 RK_PA0 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru CLK_GMAC_SRC>, <&cru CLK_GMAC_TX_RX>, <&cru CLK_GMAC_ETHERNET_OUT>;
+ assigned-clock-parents = <&cru CLK_GMAC_SRC_M1>, <&cru RGMII_MODE_CLK>;
+ assigned-clock-rates = <125000000>, <0>, <25000000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rgmii1_miim &rgmii1_bus2 &rgmii1_bus4 &clkm1_out_ethernet>;
tx_delay = <0x2a>;
rx_delay = <0x1a>;
phy-handle = <&phy>;
status = "okay";
}
&mdio {
phy: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
+ clocks = <&cru CLK_GMAC_ETHERNET_OUT>;
};
}
3.12.3 RGMII Crytal 25M for PHY, PLL output 125M for TX_CLK
gmac m0
&gmac {
+ phy-mode = "rgmi";
+ clock_in_out = "output";
snps,reset-gpio = <&gpio3 RK_PA0 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru CLK_GMAC_SRC>, <&cru CLK_GMAC_TX_RX>;
+ assigned-clock-parents = <&cru CLK_GMAC_SRC_M0>, <&cru RGMII_MODE_CLK>;
+ assigned-clock-rates = <125000000>, <0>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rgmii0_miim &rgmii0_bus2 &rgmii0_bus4 &clkm0_out_ethernet>;
tx_delay = <0x2a>;
rx_delay = <0x1a>;
phy-handle = <&phy>;
status = "okay";
}
&mdio {
phy: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
gmac m1
&gmac {
+ phy-mode = "rgmi";
+ clock_in_out = "output";
snps,reset-gpio = <&gpio3 RK_PA0 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru CLK_GMAC_SRC>, <&cru CLK_GMAC_TX_RX>;
+ assigned-clock-parents = <&cru CLK_GMAC_SRC_M1>, <&cru RGMII_MODE_CLK>;
+ assigned-clock-rates = <125000000>, <0>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rgmii1_miim &rgmii1_bus2 &rgmii1_bus4 &clkm1_out_ethernet>;
tx_delay = <0x2a>;
rx_delay = <0x1a>;
phy-handle = <&phy>;
status = "okay";
}
&mdio {
phy: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
3.12.4 RGMII Crytal 25M for PHY, RGMII_CLK input 125M for TX_CLK
gmac m0
&gmac {
+ phy-mode = "rgmi";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio3 RK_PA0 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru CLK_GMAC_RGMII_M0>, <&cru CLK_GMAC_SRC_M0>, <&cru CLK_GMAC_SRC>, <&cru CLK_GMAC_TX_RX>;
+ assigned-clock-parents = <&gmac_clkin_m0>, <&cru CLK_GMAC_RGMII_M0>, <&cru CLK_GMAC_SRC_M0>, <&cru RGMII_MODE_CLK>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rgmii0_miim &rgmii0_bus2 &rgmii0_bus4>;
tx_delay = <0x2a>;
rx_delay = <0x1a>;
phy-handle = <&phy>;
status = "okay";
}
&mdio {
phy: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
gmac m1
&gmac {
+ phy-mode = "rgmi";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio3 RK_PA0 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
/* Reset time is 20ms, 100ms for rtl8211f */
snps,reset-delays-us = <0 20000 100000>;
+ assigned-clocks = <&cru CLK_GMAC_SRC>, <&cru CLK_GMAC_TX_RX>, <&cru CLK_GMAC_ETHERNET_OUT>;
+ assigned-clock-parents = <&cru CLK_GMAC_SRC_M1>, <&cru RGMII_MODE_CLK>;
+ assigned-clock-rates = <125000000>, <0>, <25000000>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rgmii1_miim &rgmii1_bus2 &rgmii1_bus4>;
tx_delay = <0x2a>;
rx_delay = <0x1a>;
phy-handle = <&phy>;
status = "okay";
}
&mdio {
phy: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
3.12.5 RMII Clock Output
gmac m0
&gmac {
+ phy-mode = "rmi";
+ clock_in_out = "output";
snps,reset-gpio = <&gpio3 RK_PC5 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 50000 50000>;
+ assigned-clocks = <&cru CLK_GMAC_SRC_M0>, <&cru CLK_GMAC_SRC>, <&cru CLK_GMAC_TX_RX>;
+ assigned-clock-rates = <0>, <50000000>;
+ assigned-clock-parents = <&cru CLK_GMAC_RGMII_M0>, <&cru CLK_GMAC_SRC_M0>, <&cru RGMII_MODE_CLK>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmii0_miim &rgmii0_rxer &rmii0_bus2 &rgmii0_mckinout>;
phy-handle = <&phy>;
status = "okay";
}
&mdio {
phy: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
gmac m1
&gmac {
+ phy-mode = "rmii";
+ clock_in_out = "output";
snps,reset-gpio = <&gpio3 RK_PC5 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 50000 50000>;
+ assigned-clocks = <&cru CLK_GMAC_SRC_M1>, <&cru CLK_GMAC_SRC>, <&cru CLK_GMAC_TX_RX>;
+ assigned-clock-rates = <0>, <50000000>;
+ assigned-clock-parents = <&cru CLK_GMAC_RGMII_M1>, <&cru CLK_GMAC_SRC_M1>, <&cru RGMII_MODE_CLK>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmii1_miim &rmii1_rxer &rmii1_bus2 &rmii1_mckinout>;
phy-handle = <&phy>;
status = "okay";
}
&mdio {
phy: phy@0 {
compatible = "ethernet-phy-ieee8002.3-c22";
reg = <0x0>;
};
}
3.12.6 RMII Clock Input
gmac m0
&gmac_clkin_m0 {
+ clock-frequency = <50000000>;
}
&gmac {
+ phy-mode = "rmii";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio3 RK_PC5 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 50000 50000>;
+ assigned-clocks = <&cru CLK_GMAC_RGMII_M0>, <&cru CLK_GMAC_SRC_M0>, <&cru CLK_GMAC_SRC>, <&cru CLK_GMAC_TX_RX>;
+ assigned-clock-rates = <0>, <0>, <50000000>;
+ assigned-clock-parents = <&gmac_clkin_m0>, <&cru CLK_GMAC_RGMII_M0>, <&cru CLK_GMAC_SRC_M0>, <&cru RGMII_MODE_CLK>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&rmii0_miim &rmii0_rxer &rmii0_bus2 &rgmii0_mckinout_level0>;
phy-handle = <&phy>;
status = "okay";
}
&mdio {
phy: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
gmac m1
&gmac_clkin_m1 {
+ clock-frequency = <50000000>;
}
&gmac {
+ phy-mode = "mii";
+ clock_in_out = "input";
snps,reset-gpio = <&gpio3 RK_PC5 GPIO_ACTIVE_LOW>;
snps,reset-active-low;
snps,reset-delays-us = <0 50000 50000>;
+ assigned-clocks = <&cru CLK_GMAC_RGMII_M1>, <&cru CLK_GMAC_SRC_M1>, <&cru CLK_GMAC_SRC>, <&cru CLK_GMAC_TX_RX>;
+ assigned-clock-rates = <0>, <0>, <50000000>;
+ assigned-clock-parents = <&gmac_clkin_m1>, <&cru CLK_GMAC_RGMII_M1>, <&cru CLK_GMAC_SRC_M1>, <&cru RGMII_MODE_CLK>;
+ pinctrl-names = "default";
+ pinctrl-0 = <&mii1_miim &rgmii1_rxer &mii1_bus2 &rgmii1_mckinout_level10>;
phy-handle = <&phy>;
status = "okay";
}
&mdio {
phy: phy@0 {
compatible = "ethernet-phy-ieee802.3-c22";
reg = <0x0>;
};
}
